The battery analyzer that tests, conditions, and charges batteries and then generates a test report showing the condition of the battery.

Specs at a glance

* Battery type: all chemistries, primary and secondary cells

* Battery voltage: single cell to 18V (or higher)

* Battery capacity: mAh to over 100Ah

* Charge current: Up to 2A per channel

* Load current: Up to 2.5A/18W per channel

* Number of independent channels: 2

Price

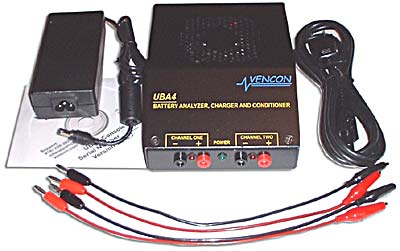

The High Voltage UBA4 includes a 24V 90W universal (100 to 240V input) power supply that can simultaneously charge two batteries up to 21V at 1.8A. This is perfect if you are testing higher voltage battery packs. If you use the channel combiner you can charge a battery at up to 3.6A.

Li-Ion                                                       5                                                  18V

Maximum number of cells in series that can be charged (at 2A)          Battery Pack Voltage

NiCd/NiMH                                             13                                               15.6V

Lead acid/Gel cells                                   8                                                  16V
